April 28, 2020Matherne Instrumentation’s anchor type weight indicator system is designed to give accurate readings of hook load and weight on bit. The system is designed to work with all major deadline anchors using a tension or compression loadcell.

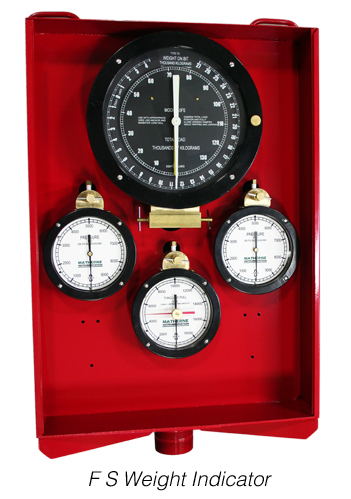

The weight indication system includes a 12” or 16” indicator, dial set, hose, and loadcell. The system is available in box mount or panel mount styles. Metric equivalents in Kgs and DaN.
We Provide Innovative Weight Indication Systems in Houston, TX & Beyond
At Matherne Instrumentation, we've engineered our anchor type weight indicator systems to suit the evolving needs of today's manufacturers. No matter the specific nature of your upcoming application, you can rely on our innovative implements to provide accurate weight indication readings under the most harsh worksite conditions. When it comes to contemporary weight indicators, nobody does it better than our instrumentation pros.
Contact Us Today to Learn More About Our Weight Indication Options!
If you're interested in exploring our current selection of weight indication instruments, don't waste another moment. Be sure to browse each of the following sections to get a better sense of our distinct models. As always, you're more than welcome to contact one of our knowledgeable representatives with any additional questions, comments, or concerns. The certified staff members at Matherne Instrumentation take immense pride in providing weight indication options to clients throughout Odessa, Midland, and Houston, TX; Houma and Lafayette, LA; Williston, ND; Pittsburgh, PA and all the surrounding communities.
MODEL 30G for Deadline Loads to 30,000 lbs.
- 4, 6, and 8 Lines Strung

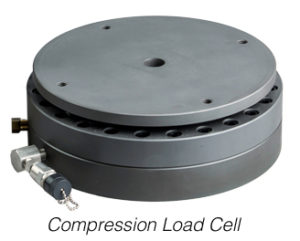

- Uses 16.1 Sq. In. Anchor Type Compression Loadcell
- 8.5” Indicator or 12” Indicator with Target Pointer
MODEL 40FS for Deadline Loads to 40,000 lbs.
- 4, 6, 8, and 10 Lines Strung

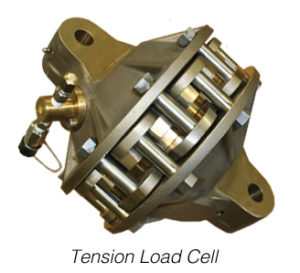

- Uses 16.1 Sq. In. Anchor Type Compression Loadcell or 16.1 Sq. In. FS Tension Loadcell
- 12” Indicator or 16” Indicator
MODEL 50D for Deadline Loads to 50,000 lbs.
- 6, 8, 10, and 12 Lines Strung
- Uses 36.767 Sq. In. Anchor Type Compression Loadcell or 36.767 Sq. In. Bronze Tension Loadcell
- 12” Indicator or 16” Indicator
MODEL 75E for Deadline Loads to 75,000 lbs.
- 6, 8, 10, and 12 Lines Strung
- Uses 50 Sq. In. Anchor Type Compression Loadcell or 36.767 Sq. In. Bronze Tension Loadcell
- 12” Indicator or 16” Indicator
MODEL 100EB for Deadline Loads to 100,000 lbs.
- 8, 10, 12, and 14 Lines Strung
- Uses 50 Sq. In. Anchor Type Compression Loadcell or 36.767 Sq. In. Bronze Tension Loadcell
- 12” Indicator or 16” Indicator
MODEL 125 for Deadline Loads to 125,000 lbs.
- 10, 12, 14, and 16 Lines Strung
- Uses 50 Sq. In. Anchor Type Compression Loadcell
- 12” Indicator or 16” Indicator
MODEL 150 for Deadline Loads to 150,000 lbs.
- 10, 12, 14, and 16 Lines Strung
- Uses 50 Sq. In. Anchor Type Compression Loadcell
- 12” Indicator or 16” Indicator
MODEL 200 for Deadline Loads to 200,000 lbs.
- 10, 12, 14, and 16 Lines Strung
- Uses 50 Sq. In. Anchor Type Compression Loadcell
- 12” Indicator or 16” Indicator
ORDERING SPECIFICATIONS:
- Single Line Load
- Type of Deadline Anchor
- Length of Hose
- Number of Lines Strung
- Unit of Measure
