Shaft Encoders

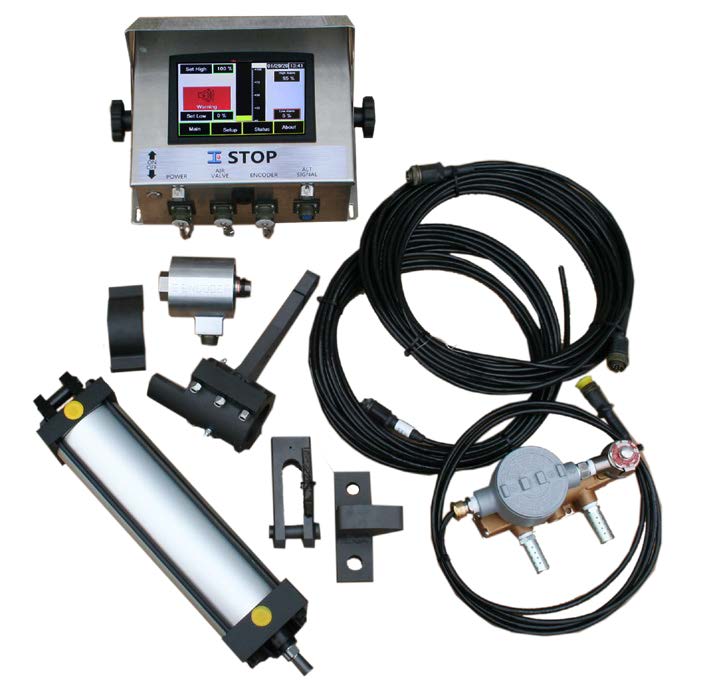

Choke Position Indicator System
February 17, 2022Features:

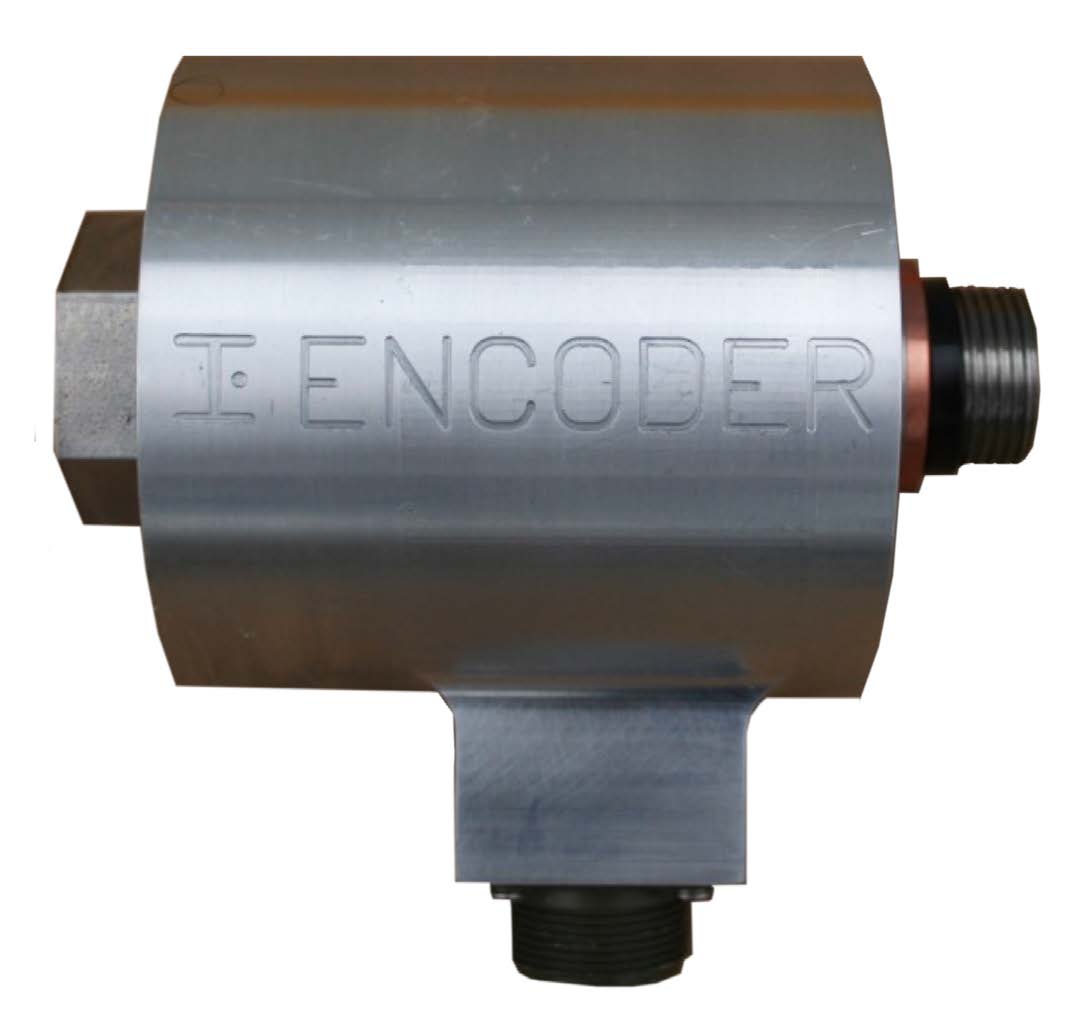

• Rugged aluminum housing and stainless steel shaft
• Multiple shaft sizes available (5/8”-18 UNF thread
to mate to an Eaton B2 or B3 rotor seal or 1”-14 UNS thread to mate to an Eaton C or C2 rotor seal)
• High quality connectors and cable assemblies selected to
optimize encoder performance
• Wide range of shaft couplings and adapters available to match your exact requirements
• Repair/rebuild services available at your closest
Matherne Instrumentation repair facility
Specifications:
• Format: Two channel quadrature (AB)
• Phase Sense: A leads B for CCW shaft rotation
• Resolution: 1 to 2000 PPR
• Rotation Maximum: 1000 RPM
• Input Power: 9 VDC to 28 VDC
• Mating Connector: Seven socket female Amphenol
connector
• Shaft: Convertible Shaft Size
• Temperature: -40° to 80°C operating, -40° to 100°C storage
-
- I-Stop Crown Protector System
-
- Shaft Encoder
